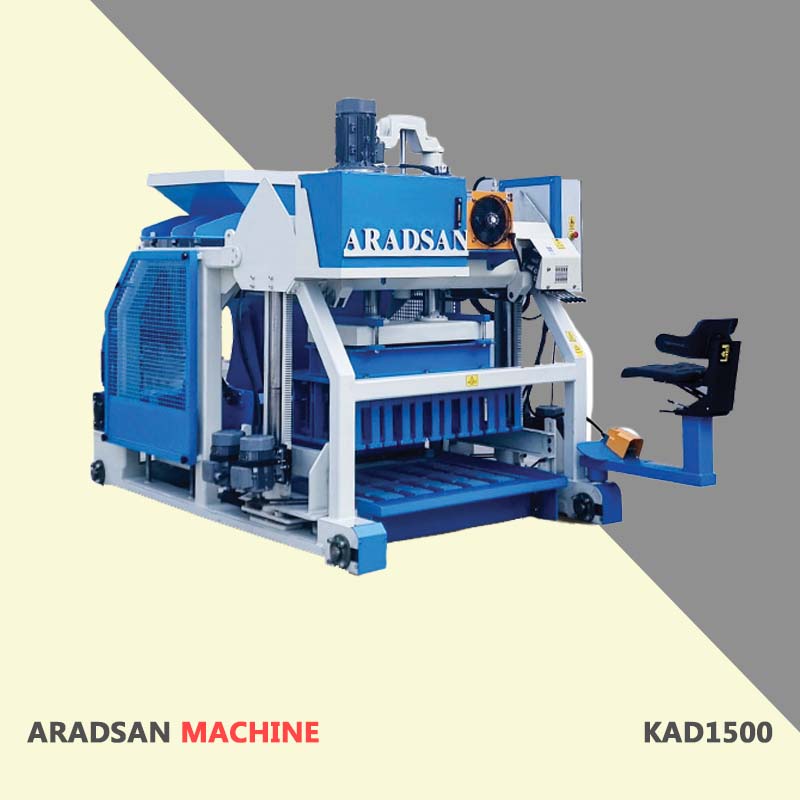

Hydraulic Block Machine KAD1500: Superior Production Efficiency

The Block and Flower Box Making Machine KAD1500 Hydraulic, unlike other models in the KADONA series, is a dual-function system capable of producing a wide range of concrete blocks and flower boxes. It can work with various raw materials such as sand and gravel, natural pumice, and industrial lightweight aggregate (LECA), making it suitable for different construction and production needs.

Key Features and Advantages of the KAD1500 Mobile Block-Making Machine

• High Reliability & Versatility: Thanks to its robust performance and versatile production capabilities, the KAD1500 is one of the best-selling block-making machines by Aradsan Machinery.
• Multi-Type Block Production: Capable of producing various types of blocks such as partition blocks, ceiling blocks, and wall blocks, meeting diverse construction requirements.
• Mold Change System: Easily switch between molds to produce a wide range of cement and concrete products without the need for additional machinery.
• Impressive Production Capacity: Produces approximately 10,000 to 12,000 blocks and 5,000 flower boxes per 8-hour work shift (based on 80% operational capacity).
• User-Friendly Operation: Designed for ease of use — even semi-skilled operators can efficiently run the machine after just a few hours of training.

Technical Specifications for Mobile Cement Brick Machine KAD1500:

Quality Components:

• Vibration’s generator: Vem (Germany)
• Controlling system of hydraulic: Galtech (Italy)
• Hydraulic hose: Flex (Germany or Italy)
• Channel beam: European type
• All sheets of molds are made from ST60 or ST52, and parts exposed to friction are manufactured with anti-friction steel.
• Jack’s shaft: Hard chrome (Italy)
• The jacks of the system: Boch or Bohler (Germany)
• The locks and fastening parts of the system (Germany)
• Equipped with hydraulic system (two levers for pressing and vacating)
• Equipped with four sets of rotational oily vibrators, each powered by a 2 HP generator.

Electromotor Configuration:

• One 3 hp electromotor for moving
• One 10 hp electromotor for hydraulic system
• Four 3 hp electromotors for vibration system
• One 3 hp electromotor for automatic turning around

For specific customer orders, particularly for unique concrete products, two additional electro-vibrators can be integrated into the system, allowing the mold and matrix to operate with five vibrators for enhanced concrete production.

Product Dimensions and Types:

Types of blocks:

Types of flowerbox:

See the KAD1500 in action: Watch Video

Product Image

Customs Information

• HS Code: 000000
