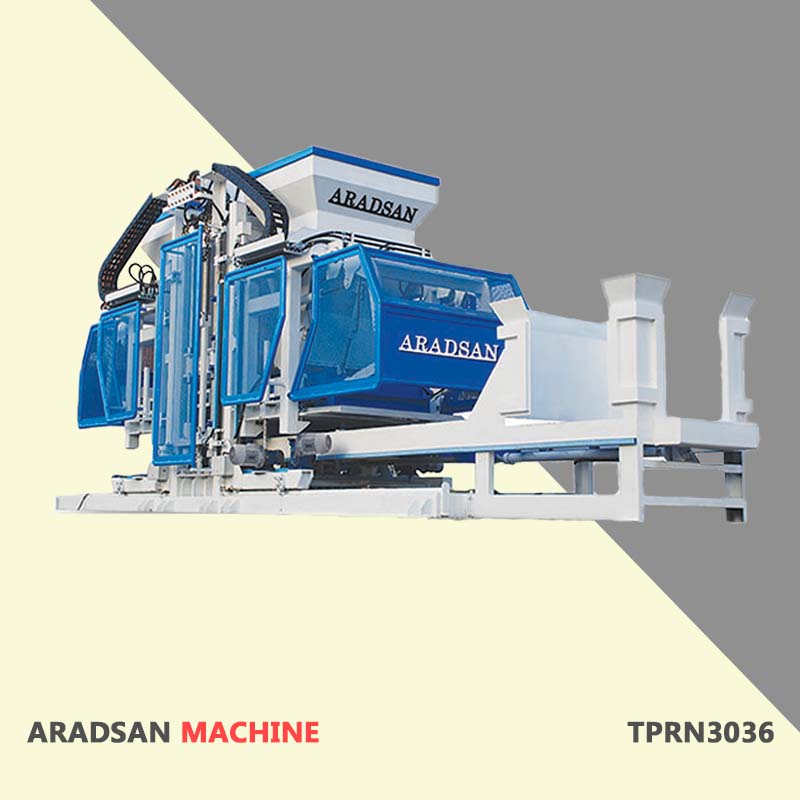

The Stationary Concrete Block Making Machine TP.RN3036, proudly produced by Aradsan Machine, represents a leap forward in automated construction material production. This versatile system is engineered to effortlessly produce a diverse range of concrete parts, including high-quality curb stones, robust concrete blocks, intricate pavers, and functional flower boxes. Its exceptional adaptability is achieved simply by changing the mould, allowing for maximum flexibility in production. The entire production line, from the initial weighing and mixing of materials to the final stages of production, curing, and packing, operates on a full automatic interlocking paving system. This advanced design minimizes human intervention, ensuring consistent quality, increased efficiency, and reduced labor costs.
The TP.RN3036 is a sophisticated 4-function system, uniquely capable of manufacturing both single-color and double-color pavers and curbstones, catering to a wide array of aesthetic and functional requirements. This machine boasts an impressive capacity to produce 104 different types of blocks, 93 variations of curbstones (available in both vertical and horizontal designs), 67 distinct types of flower boxes, and an astonishing 2,860 types of pavers and their related derivatives. This extensive capability makes it an indispensable asset for any large-scale concrete product manufacturing operation, offering unparalleled versatility and output.
The Specification Of Parts Used in Automatic Stationary Concrete Block Making Machine TP.RN3036:
To ensure unparalleled durability, reliability, and extended operational life, all critical components of the Automatic Stationary Concrete Block Making Machine TP.RN3036 are meticulously sourced from top-tier Italian or German manufacturers. This commitment to quality minimizes the likelihood of system failure, significantly prolonging the machine’s lifespan and effectively preventing costly maintenance expenses. Key specifications of the high-quality parts include:
- Pump’s generator: Siemens
- Vibration’s generator: Siemens or Vem (Germany)
- Electromotor for setting section: Deg
- The piston jack’s tube: Boch or Bohler (Germany).
- The integrated sheet for mould (pavement) ck 45: heated sheet or Dillidur.
- Hydraulic hose: Flex (Germany or Italy)
- All sheets of moulds are made from ST60 or ST52 and the parts exposed to the friction is manufactured with anti-friction steel (seven different sheet).
- Jack’s shaft: Hard chrome (Italy)
- Control panel: Plc, Siemens (Germany)
- All parts of control panel: Siemens (Germany) with 15 inch touch screen.
- Micro switch and sensors: Muller (Germany)
- The cooling of oil system is done by radiator
- The frame of machine: special profile with 12 mm thickness.
- The sheets used inside mixer: Hardox (Sweden), Dillidur (Germany)
The machine offers impressive production capacities for various concrete products:
| Type of production parts | Production dimensions | Production capacity |
|---|---|---|
| paving stone | 200x100x60 mm | 1600 m2 |
| curbstone | 500x500x150 mm | 7000 Pcs |
| curbstone | 500x350x150 mm | 8000 Pcs |
| Concrete block | 400x200x200 mm | 24000 Pcs |
| Concrete block | 400x200x150 mm | 27000 Pcs |
| flowerbox | 450x250x200 mm | 12000 Pcs |
