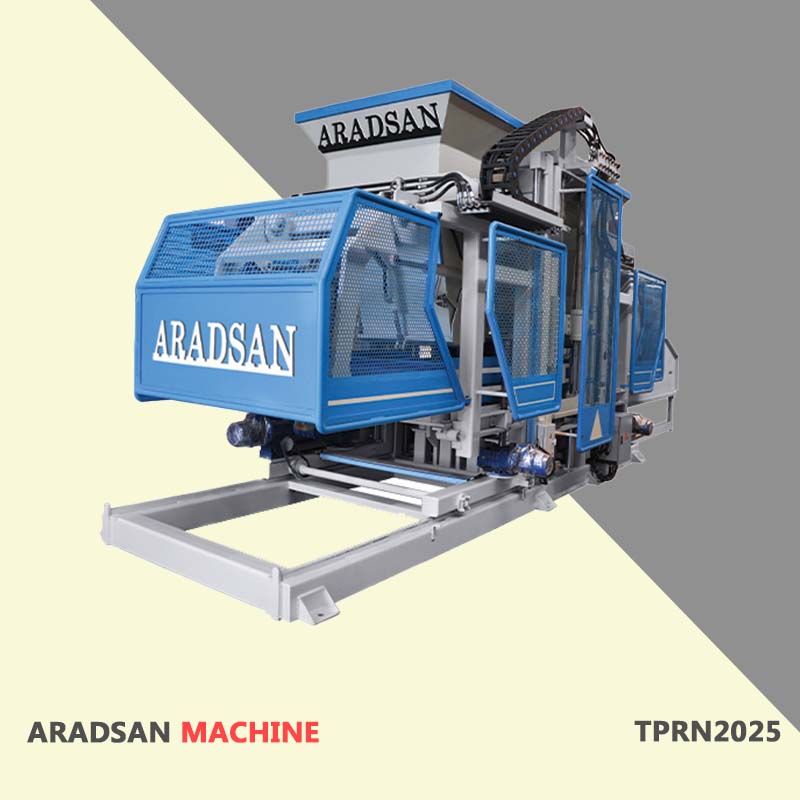

Automatic block production line (CurbStone, paving stone) TP.RN2025 is produced by Aradsan Machine. This system can produce different types of concrete parts such as pavers, curbstone, Hollow block, Wall Block, Canivo and flower box. It is possible just by changing the mould.
The production line of TP.RN2025 automatic from the basic to advance phase (weighing material, mixing materials, production, curing system and packing) is done by machine and without human interposition. The products of Aradsan Machine, with preservation of the quality and quantity of concrete production components and increasing the field of operation, have succeeded in facing the needs of the community in the field of competition with domestic and foreign competitors.
Overview of the TP.RN2025 production line performance
The TP.RN2025 automatic block making machine uses standard wooden pallets to fully automate the production of various concrete products such as blocks, pavers, curbstones, and flower boxes. Pallets are guided from the magazine to beneath the mold frame via a jack and hydraulic system, and the finished product is placed on them. Raw materials such as sand, gravel, cement, expanded clay (LECA), pumice, and water are first measured by a weighing system and then transferred to the mixer for blending.
The prepared mortar is conveyed via belt conveyors or mortar feeders into the machine, where the molds are automatically filled with vibration and pressing. All steps are controlled by a PLC system, with the operator only monitoring the process. Finished products are placed on pallets, moved by a chain conveyor to the elevator, and then transferred to a curing chamber. After 8 to 10 hours of curing, the products are moved by the finger car for packaging and storage. Empty pallets are cleaned, flipped, and returned to the production line.
The Specification Of Parts Used In Automatic Brick Making Machine TP.RN2025:
- Piston Jack Pipes: Special pipes for stone crushing, BOSCH or BOHLER from Germany, or CE-certified European pipes.
- Hydraulic Hoses: German or Italian Type
- Control Electric Valves: Duplomatic from Italy.
- Jack Shafts: Special chrome-hardened steel from Italy.
- Control Electrical Panel: Siemens components from Germany (thermal switches and contactors), relays from Muller in Germany.
- Generators: Siemens and VEM from Germany, CE-certified European generators.
- Adjustable Electric Motors: CE-certified European motors.
- Sheets inside the Mixer System and Paroi: Dillidor sheets from Germany or Hardox from Sweden (20–10 mm).
- System Molds: Three different types of sheets with special alloys and high wear resistance.
- Vibrator Table System: Asymmetric and Dual
- Used Paint: Automotive-specific paint.
- Machine Chassis: Heavy-duty industrial steel, 10–12 mm thick, highly resistant to impact and pressure (safety factor 2.5).
- Touch screen monitor: Siemens Germany, capable of automation control through microswitches and sensors.
| Type of production parts | Production dimensions | Production capacity |
| paving stone | 200x100x60 mm | 1000 m2 |
| curbstone | 500x500x150 mm | 5000 Pcs |
| curbstone | 500x350x150 mm | 6000 Pcs |
| Concrete block | 400x200x200 mm | 14000 Pcs |
| Concrete block | 400x200x150 mm | 16000 Pcs |
| flowerbox | 450x250x200 mm | 6000 Pcs |
Product Image
Customs Information
- HS Code: 847480
