Automatic Paver Production Line (CurbStone, Block, and Paving Stone) TP.RN2530

The Automatic Paver Production Line (CurbStone, block and paving stone) TP.RN2530, manufactured by Aradsan Machine, is a versatile and fully integrated system designed for high-capacity concrete product manufacturing. This advanced line effortlessly produces various concrete elements such as pavers, curbstones, hollow blocks, canivos, and flower boxes, simply by changing the mould. From raw material weighing and mixing to production, curing, and final packaging, the entire TP.RN2530 automatic production line operates with minimal human intervention, ensuring efficiency and consistent quality.

Aradsan Machine is committed to maintaining the highest standards of quality and quantity in concrete production components. By continuously expanding its operational capabilities, Aradsan Machine successfully meets the evolving demands of the market, distinguishing itself among both domestic and international competitors.

Complete Production Stages of the TP.RN2530 Automatic Block-Making Machine

• Stage 1: Material Preparation Raw materials such as sand, gravel, cement, and water are precisely weighed using an automated batching system and thoroughly mixed in a high-performance mixer. The prepared mixture is then efficiently transferred via a conveyor belt or feeder to the production section, ready for moulding.
• Stage 2: Block Production The homogeneously mixed material is fed into the machine’s hopper, from where it is automatically guided into the mould by a loader. The machine then applies precise compression to form durable concrete blocks, which are carefully placed onto pallets for the next stage.
• Stage 3: Packaging and Storage At the end of the chain conveyor, pallets laden with newly formed products are stacked using an advanced elevator system. A specialized finger car then transports these stacked pallets to a controlled steam curing chamber. After an optimal curing period of 8 to 10 hours, the dried blocks proceed to the packaging section. Here, a sophisticated packaging robot wraps and stacks the products, which are then moved to a dedicated storage area. Simultaneously, empty pallets are cleaned and seamlessly returned to the production cycle via the chain conveyor and pallet return system.

The Specification Of Parts Used in Fully Automatic Pavement Making Machine TP.RN2530:

• Piston Jack Pipes: Special pipes for stone crushing, sourced from reputable German manufacturers like BOSCH or BOHLER, or other CE-certified European pipes.
• Hydraulic Hoses: Premium German or Italian Type for reliable fluid transfer.
• Control Electric Valves: High-performance Duplomatic valves from Italy.
• Jack Shafts: Crafted from special chrome-hardened steel, imported from Italy, ensuring exceptional durability.
• Control Electrical Panel: Equipped with robust Siemens components from Germany (thermal switches and contactors) and dependable Muller relays, also from Germany.
• Generators: Siemens and VEM generators from Germany, all CE-certified European generators, guaranteeing stable power.
• Adjustable Electric Motors: High-efficiency, CE-certified European motors for precise control.
• Sheets inside the Mixer System and Paroi: Constructed from Dillidor sheets from Germany or Hardox from Sweden (20–10 mm), known for extreme wear resistance.
• System Molds: Fabricated from three different types of sheets featuring special alloys and high wear resistance for long-lasting performance.
• Vibrator Table System: Incorporates an asymmetric and dual vibrator table system for superior concrete compaction.
• Used Paint: Features automotive-specific paint for enhanced protection and aesthetic appeal.
• Machine Chassis: Built from heavy-duty industrial steel, 10–12 mm thick, providing exceptional resistance to impact and pressure (safety factor 2.5).
• Touch Screen Monitor: A Siemens Germany touch screen monitor, enabling comprehensive automation control via microswitches and sensors.

This advanced production line boasts impressive daily capacities: up to 1400 m² of paving stone (200x100x60 mm), 6000 Pcs of 500x500x150 mm curbstone, or 7500 Pcs of 500x350x150 mm curbstone. For concrete blocks, it can produce 18000 Pcs (400x200x200 mm) or 21000 Pcs (400x200x150 mm). Additionally, it can produce up to 8000 Pcs of 450x250x200 mm flowerboxes, making it a versatile solution for various concrete product needs.

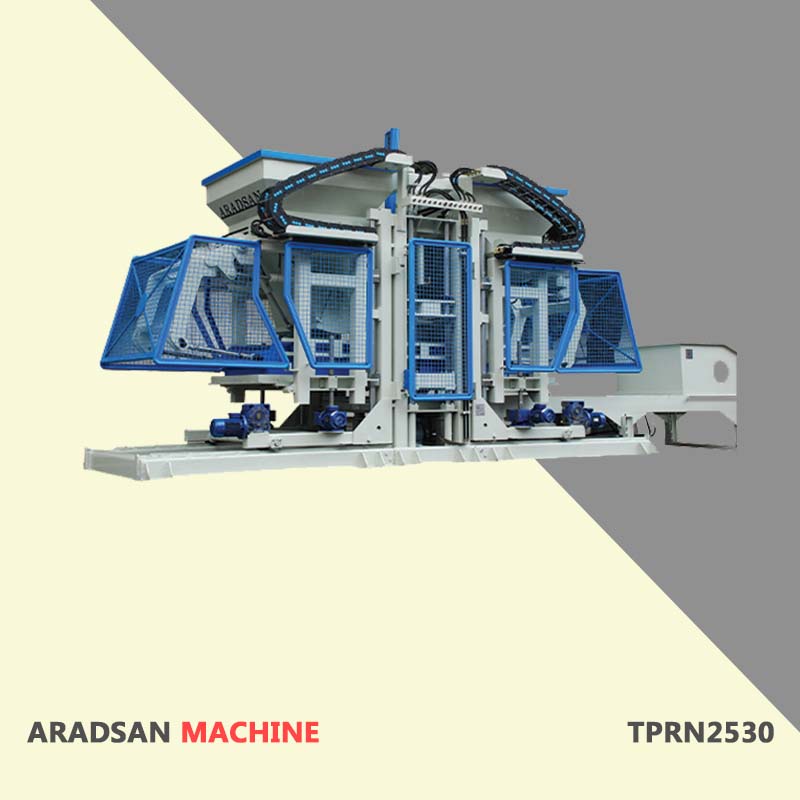

Product Image

Customs Information

• HS Code: 847480
