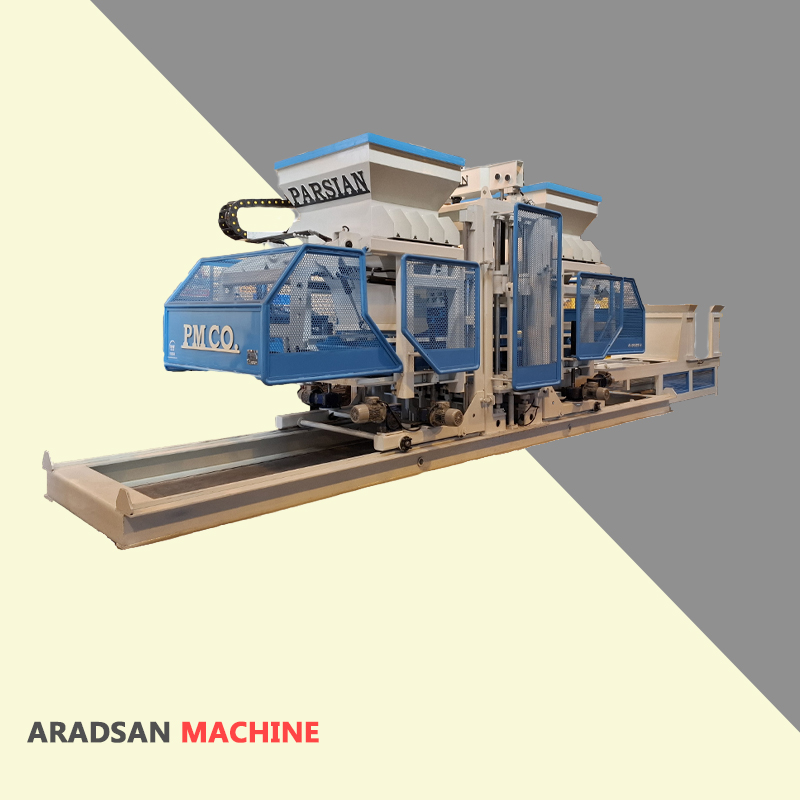

The Concrete Block Machine TP. RN4042 from Aradsan is a groundbreaking, fully automatic solution for high-volume concrete component production. Recognized as the largest and most advanced device of its kind in the Middle East, this machine is designed to revolutionize the manufacturing of blocks, curbs, pavers, and flower boxes. Its unparalleled versatility allows for the creation of 104 block models, 93 curb models (both upright and horizontal), 67 distinct flower box designs, and an impressive range of 2860 paving stone models, along with numerous other derivatives. This four-function machine delivers exceptional speed and capacity, empowering contractors to efficiently meet stringent production demands and accelerate their construction projects.
Beyond its robust output, the TP. RN4042 integrates sophisticated technologies for enhanced operational excellence. Featuring an advanced PLC control system and an automatic mold-changing mechanism, this machine sets new industry benchmarks for efficiency and precision. These cutting-edge innovations ensure higher standards of production quality and consistency compared to conventional devices on the market. For businesses prioritizing reliability, superior performance, and significant automation in concrete block manufacturing, the TP. RN4042 represents the definitive choice, offering a substantial competitive advantage.
Key Specifications & Components of the Automatic Concrete Block Machine TP.RN4042:
- Vibration Generators: Equipped with high-performance Siemens or Vem (Germany) generators for consistent and powerful compaction.
- Piston Jack Tubes: Utilizes durable Boch or Bohler (Germany) tubes, ensuring long-lasting and reliable hydraulic operation.
- Hydraulic Hoses: Features premium Flex (Germany or Italy) hydraulic hoses for optimal fluid transfer and system integrity.
- Mold Sheets: All mold sheets are crafted from robust ST60 or ST52 steel, with friction-exposed parts manufactured from specialized anti-friction steel (seven different types).
- Jack Shaft: Incorporates hard chrome (Italy) shafts for exceptional wear resistance and smooth operation.
- Control Panel: Powered by a Siemens (Germany) PLC control system, offering precise and intuitive machine management.
- Interface: Includes a user-friendly 15-inch Siemens (Germany) touch screen for comprehensive control and monitoring.
- Machine Frame: Constructed from a special 12mm thick profile, providing exceptional structural integrity and stability.
- Mixer Sheets: Internal mixer sheets are made from Hardox (Sweden) or Dillidur (Germany), renowned for their extreme wear resistance.
Production Capacities:
| Type of Production Parts | Production Dimensions | Daily Production Capacity |
|---|---|---|
| Paving Stone | 200x100x60 mm | 2000 m² |
| Curbstone (Large) | 500x500x150 mm | 8750 Pcs |
| Curbstone (Medium) | 500x350x150 mm | 10000 Pcs |
| Hollow Concrete Block | 400x200x150 mm | 34000 Pcs |
| Flower Box | 450x250x200 mm | 15000 Pcs |
Product Image
Customs Information
- HS Code: 000000
