The Block, Curbstone and Flower Box Making Machine KAD1100 Hydraulic (Mobile) from Aradsan Company is a versatile, semi-automatic solution engineered for high-quality concrete product manufacturing. Designed for workshops and production lines, this robust machine efficiently produces concrete blocks, intricate flower boxes, and durable curbstones. It’s capable of utilizing various raw materials, including sand, gravel, natural pumice (scoria), and industrial lightweight aggregate (LECA), providing flexibility for diverse construction needs.
With impressive production capabilities, the KAD1100 can generate approximately 3,800 to 4,500 concrete blocks, 1,200 curbstones, and 2,000 to 2,500 flower boxes per work shift. The machine is adept at producing curbstones with a typical running length of 30 cm, and it can even handle products up to 90 cm in height, catering to a wide range of project specifications.
Advanced Hydraulic Operation for Seamless Production
The KAD1100 features a sophisticated hydraulic, mobile movement system controlled by a hydraulic steering wheel, allowing for smooth and effortless navigation across flat concrete production surfaces. The operational process is streamlined for maximum efficiency:
- Movement and Steering System: The KAD1100 is equipped with a hydraulic, mobile movement system, controlled by a hydraulic steering wheel. This allows the machine to move smoothly and turn easily on a flat concrete surface (production band).
- Mix Preparation: Raw materials are combined in the mixer according to a specific mix design to produce the mortar needed for manufacturing blocks, curbstones, or flower boxes.
- Mortar Transfer: The prepared mortar is transported to the machine’s hopper using a wheelbarrow or mortar transporter.
- Automatic Mold Filling: The machine is equipped with an automatic mold filling system that directs the mortar into the mold without the need for manual handling by the operator.
- Vibration and Compaction: As the mold is being filled, vibration and gravity drop occur simultaneously to compact the mortar and form it into the desired shape.
- Product Release: After shaping, the mold and tamper rise, and the finished concrete product is left behind on the production surface.
- Mold Replacement and Production Variety: The KAD1100 features interchangeable molds, enabling it to produce over 300 different types of concrete products, including blocks, curbstones, and flower boxes.
Premium Components for Unmatched Durability
Aradsan prioritizes quality, equipping the KAD1100 with top-tier components to ensure long-lasting performance and reliability:
- Hydraulic Hoses: Flex from Italy.
- Electric Motors & Generators (Vibrator System): Siemens, Germany.
- Control Valves: Galtech from Italy.
- Mold Sheets: Special anti-wear steel.
- Jack Shafts: Special chrome-hardened steel from Italy.
- Shock Absorbing Rubber: Neoprene from Germany.
- Fasteners: German-made.
- Cylinder Jacks: Bohler from Germany.
- Machine Chassis: European type, engineered for high tolerance to vibration and pressing, boasting a safety factor of 2.5.
- Machine Color: Durable Epoxy finish.
Powerful Electromotor System
The semi-automatic KAD1100 is powered by an efficient electromotor setup:
- One 2-horsepower dynamo for machine movement.
- One 5-horsepower dynamo dedicated to the robust hydraulic system.
- Two 2-horsepower dynamos for the powerful vibration system, ensuring optimal compaction.
Invest in the KAD1100 Hydraulic (Mobile) machine for a reliable, efficient, and versatile solution for your concrete block, curbstone, and flower box manufacturing needs, backed by Aradsan’s commitment to quality.

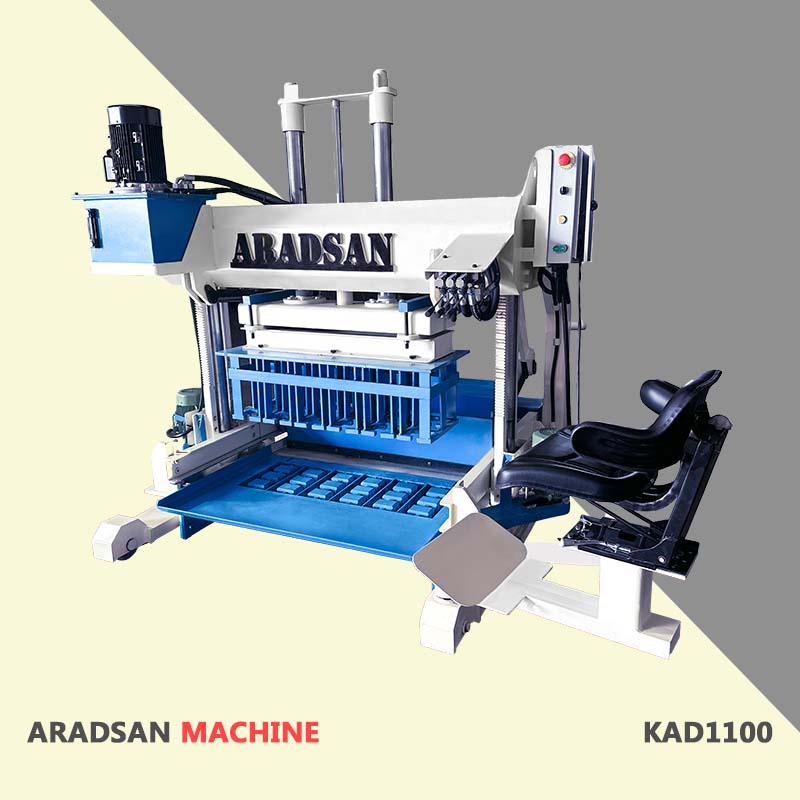

Product Image
Customs Information
- HS Code: 847480
