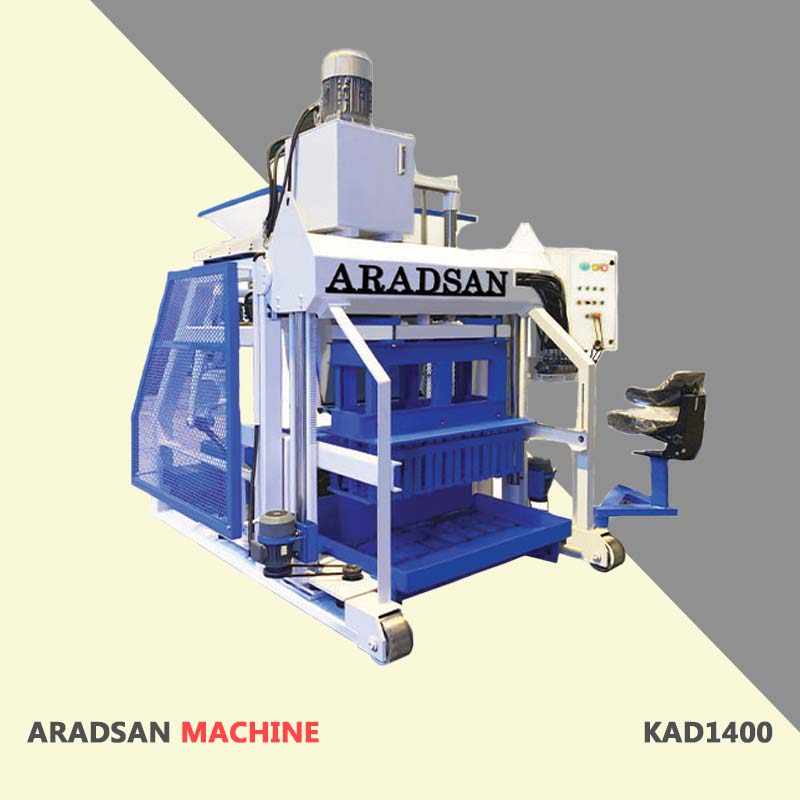

The Block, Curbstone and Flower Box Making Machine KAD1400 is a very solid system with high performance, designed and manufactured by Aradsan Machine. This hydraulic machine is capable of producing various types of roofs, wall, and partition blocks using sand, pumice, and Leca. It can also manufacture different types of curbstones, canals, and water drainage blocks up to a height of 50 centimeters, with the added advantage of having no limitations on the height of the curbstones produced.
Key Features of the KAD1400 Hydraulic Block Making Machine
- Triple-functionality: Capability to produce blocks, curbs, and flower boxes with mold changes.
- Self-feeding system: Reduces the need for human labor and increases productivity.
- Robust structure: Use of high-reliability chassis and high-quality European components.
- Advanced control: Electrical panel and control system from reputable brands such as Siemens (Germany).
- Mechanical operation: Reduces human intervention and increases production speed.
- Easy operation: Presence of levers and control buttons for easy guidance by the operator.
The Specification Of Parts Used In KAD1400:
- Vibration’s generator: Vem (Germany)
- Controlling system of hydraulic: Galtech (Italy)
- Hydraulic hose: Flex (Germany or Italy)
- Channel beam: European type
- All sheets of moulds are made from ST60 or ST52 and the parts exposed to the friction is manufactured with anti-friction steel.
- Jack’s shaft: Hard chrome (Italy)
- The jacks of the system: Boch or Bohler (Germany)
- The locks and fastening parts of the system (Germany)
- Equipped with hydraulic system (two levers for pressing and vacating)
- Equipped with one set of electro-vibration and two set of rotational oily vibrator, each of which is powered by a generator with 2 HP (horse power).
The Electromotor of the Semi-Automatic block Making Machine KAD1400:
- One 3 hp electromotor for moving
- One 7.5 hp electromotor for hydraulic system
- Two 3 hp electromotor for vibration system
- One 3 hp electro-vibration
- One 2 hp electromotor for turning around automatically
In some specific cases when the customer order is based on the production of a specific concrete product, two electro-vibrations are also added to the system which in fact the system of mould and matrix of five direction by five vibrators perform the action of making concrete. Its production capacity is 1700 to 2500 curbstones, 5500 to 7000 blocks in 8 hours. (Production with 80 % of its capacity in 8 hours.)
Product Image
Customs Information
- HS Code: 847480
