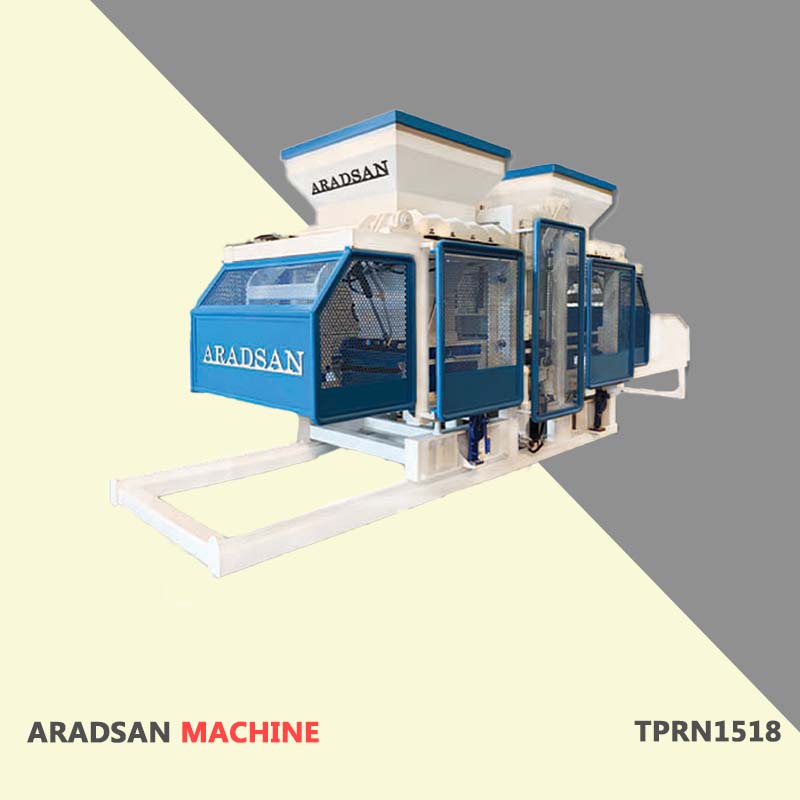

The Automatic paver production line TP.RN1518 is a versatile system designed to produce various concrete parts, including hollow blocks, wall blocks, curbstones, pavers (interlocking bricks), and flower boxes. This robust machine is available in two distinct configurations: single packet and double packet. The double packet system offers a notable 10% increase in production capacity compared to its single packet counterpart, and crucially, it enables dual-color production, adding aesthetic value to the finished products. A key advantage of the double packet system lies in its ability to produce pavers with a two-layer structure: the lower part utilizes coarse-grained materials to maximize compressive strength for superior flooring durability, while the upper part features fine-grained materials, ensuring a refined and beautiful surface finish.
For the single-packet TP.RN1518, the essential auxiliary equipment comprises the main single-packet production machine, one dedicated conveyor belt, one single-packet, single-shaft mixer, one fully automatic stationary layer robot, and a chain conveyor for efficiently transferring finished products to the layer robot.
Conversely, the double-packet TP.RN1518 requires a slightly different setup, including the main double-packet production machine, two dedicated conveyor belts, one double-packet, double-shaft mixer, one fully automatic stationary layer robot, and one chain conveyor for product transfer.
The TP.RN1518 II (double packet) model is built with high-quality components from renowned international manufacturers to ensure reliability and longevity. Key parts include Siemens (Germany) vibration generators and electronic automation systems, Boch or Bohler (Germany or Italy) piston jack tubes, Galtech (Italy) controlling valves, and Flex (Germany or Italy) hydraulic hoses. The moulds are crafted from seven different types of sheet steel, with parts subjected to friction made from Dillidur (Germany) or Hardox (Italy), and tension-exposed parts from ST52, known for its resistance to stretching. Jacks shafts are hard chrome (Italy), and micro switches and sensors are from Telemecanique (French) or Muller (Germany). The machine frames are constructed from special Belgium boxes (12 mm) and designed with a safety coefficient above 3 to withstand immense pressure. The system’s design is optimized for various environmental and working conditions across different geographic locations. Moeller or Neoperan (Germany) buffers prevent vibration transmission to the frame.
This advanced production line offers impressive capacities for various concrete products:
- Paving stone (200x100x60 mm): 700 m2 per day
- Curbstone (500x500x150 mm): 3600 Pcs per day
- Curbstone (500x350x150 mm): 4000 Pcs per day
- Concrete block (400x200x150 mm): 9500 Pcs per day
- Concrete block (400x200x200 mm): 8000 Pcs per day
- Flowerbox (450x250x200 mm): 3800 Pcs per day
Invest in the TP.RN1518 for a highly efficient and durable solution for your concrete product manufacturing needs.
Product Image
Customs Information
- HS Code: 847480
