Overview:
Discover the unparalleled efficiency and versatility of the Stationary Concrete Block Making Machine TP.RN3036, expertly engineered by Aradsan Machine. This advanced, fully automatic system redefines concrete product manufacturing by allowing for the seamless production of a diverse range of items including curb stones, concrete blocks, pavers, and flower boxes. Its intelligent design facilitates effortless mold changes, ensuring maximum production flexibility and catering to a wide array of construction and landscaping needs. From raw material weighing to final product packaging, the TP.RN3036 operates with complete automation, minimizing human intervention and optimizing workflow for superior output and consistency, making it an ideal choice for large-scale concrete production facilities.
Key Features:
- Unmatched Versatility: The TP.RN3036 is a powerful 4-function system capable of producing both single-color and double-color pavers and curbstones. It boasts an impressive capacity to create 104 types of blocks, 93 types of curbstones (both vertical and horizontal), 67 types of flower boxes, and an astounding 2,860 types of pavers and their derivatives, offering unparalleled product diversity to meet varied market demands.
- Premium European Components: Built for durability and reliability, this machine integrates high-quality basic to advanced parts sourced from leading Italian and German manufacturers. Key components like Siemens generators (for pumps and vibrations), Deg electromotors, Boch or Bohler piston jack tubes, Flex hydraulic hoses, and Siemens PLC control panels with 15 inch touch screens ensure minimal system failure, extended operational life, and significantly reduced maintenance costs over time.
- Robust Construction & Materials: The frame of the TP.RN3036 is constructed from special profile steel with a substantial 12 mm thickness, ensuring stability and longevity even under continuous heavy-duty operation. Molds feature integrated sheets of ck 45 heated sheet or Dillidur pavement, while all mold sheets are made from ST60 or ST52. Parts exposed to friction are meticulously crafted from seven different types of anti-friction steel, guaranteeing sustained performance under demanding conditions. Jack shafts are hard chrome-plated (Italy) for enhanced resilience.
- Advanced Automation: Experience a truly hands-off production line covering every phase: material weighing, precise mixing, efficient production, controlled curing, and automated packing. This comprehensive automation not only boosts productivity but also ensures consistent quality, dimensional accuracy, and uniformity across all manufactured concrete products, leading to higher customer satisfaction.
Specifications:
| Type of production parts | Production dimensions | Production capacity |
|---|---|---|
| paving stone | 200x100x60 mm | 1600 m2 |
| curbstone | 500x500x150 mm | 7000 Pcs |
| curbstone | 500x350x150 mm | 8000 Pcs |
| Concrete block | 400x200x200 mm | 24000 Pcs |
| Concrete block | 400x200x150 mm | 27000 Pcs |
| flowerbox | 450x250x200 mm | 12000 Pcs |
Additional specifications include a sophisticated oil cooling system managed by a radiator to maintain optimal operating temperatures, and a comprehensive control panel featuring Siemens PLC and a 15 inch touch screen, complemented by Muller micro switches and sensors for precise and reliable operation. The use of premium materials like Hardox (Sweden) and Dillidur (Germany) for mixer sheets further underscores the commitment to durability and performance in the TP.RN3036, ensuring a long service life and high return on investment.

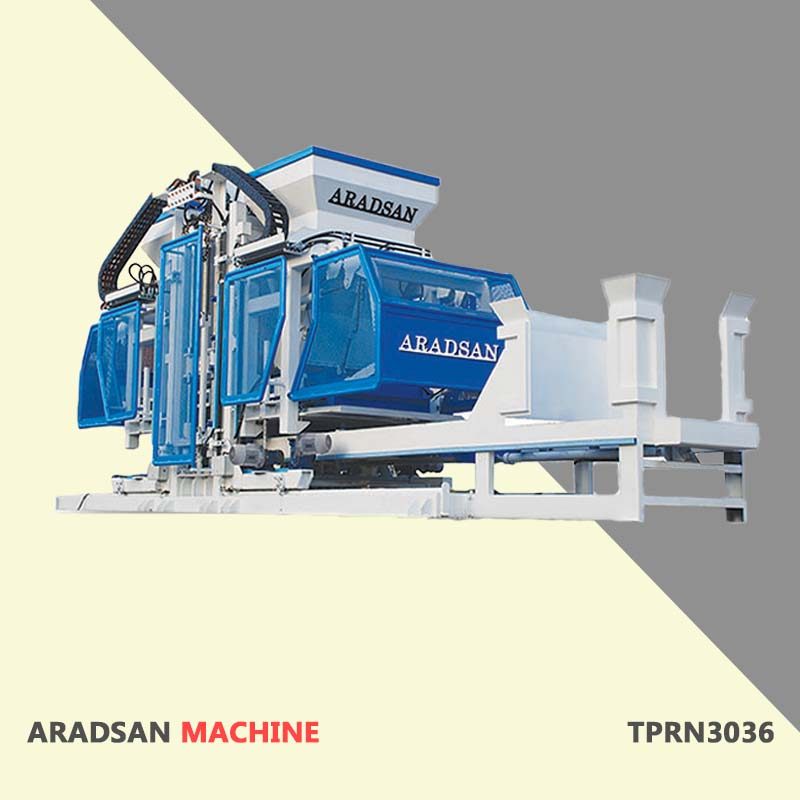

Product Image
Customs Information
- HS Code: 847480
