Automatic Block Production Line TP.RN1015: Advanced Concrete Manufacturing

Discover the cutting-edge Automatic Block Production Line TP.RN1015 from Aradsan, designed for high-efficiency manufacturing of various concrete parts including pavers, hollow blocks, wall blocks, curbstones, paver tiles, canivo, and flower boxes. This robust machine streamlines your production process, delivering consistent quality and significant output.

Versatile Production Capabilities

The TP.RN1015 is available in two types: Single Packet and Double Packet. The Double Packet system boasts a 10% higher production capacity and uniquely offers dual-color product manufacturing capabilities. The TP.RN1015 I (Single Packet) is optimized for single-color products, making it a flexible choice for diverse construction and landscaping needs. Both variants are inherently automatic, with an option for upgrading to a fully automatic system for ultimate operational convenience.

Unrivaled Quality Components

Aradsan prioritizes durability and performance, equipping the TP.RN1015 with premium-grade components:

• Hydraulic Hoses: German or Italian Type, ensuring reliable fluid power transmission.
• Control Valves: High-precision Galtek from Italy for accurate system control.
• Piston Jack Pipes: Special stone crushing pipes, BOSCH or BOHLER from Germany, or CE-certified European pipes, guaranteeing strength.
• Jack Shafts: Special chrome-hardened steel from Italy, built for longevity.
• Protective Mesh: Solid punched sheets providing robust safety.
• Machine Vibrator Table System: Engineered with alloy sheets for superior stone crushing efficiency.
• Control Electrical Panel: Features Siemens components from Germany (thermal switches and contactors) for dependable electrical management.
• Electrical Panel System: Rittal Design, ensuring professional and secure housing.
• Generators: Siemens and VEM from Germany, CE-certified European generators, providing consistent power.
• Mixer System Sheets and Paroi: Constructed with Dillidor sheets from Germany or Hardox from Sweden (20–10 mm) for extreme wear resistance.
• System Molds: Crafted from three different types of sheets with special alloys, offering high wear resistance and extended mold life.
• Used Paint: Automotive-specific paint for enhanced durability and finish.
• Machine Chassis: Heavy-duty industrial steel, 10–12 mm thick, engineered for high resistance to impact and pressure (safety factor 2.5).
• Used Tires: Neoprene tires from Germany, ensuring stability and smooth operation.

Impressive Production Capacities (TP.RN1015 I – Single Packet)

This production line offers impressive output for various products:

• Paving Stone (200x100x60 mm): Up to 500 m² per day.
• Curbstone (500x300x150 mm): Up to 1500 Pcs per day.
• Curbstone (300x350x150 mm): Up to 2000 Pcs per day.
• Concrete Block (400x200x200 mm): Up to 5000 Pcs per day.
• Concrete Block (400x200x150 mm): Up to 6000 Pcs per day.
• Flowerbox (450x250x200 mm): Up to 3000 Pcs per day.

Integrated Single-Packet System Components

The Automatic Paver Tiles Making Machine TP.RN1015 I (Single Packet) is a comprehensive solution, consisting of:

• Main single-pocket device (production machine)
• Specialized conveyor belt for material transport
• Single-pocket mixer with a single reservoir for precise mixing
• Fully automatic fixed-tier robot for precise stacking
• Chain band for efficiently transferring produced items to the fixed-tier

Invest in the Aradsan TP.RN1015 for reliable, high-volume production of concrete blocks, paving stones, and curbstones, designed for peak performance and longevity in demanding industrial environments.

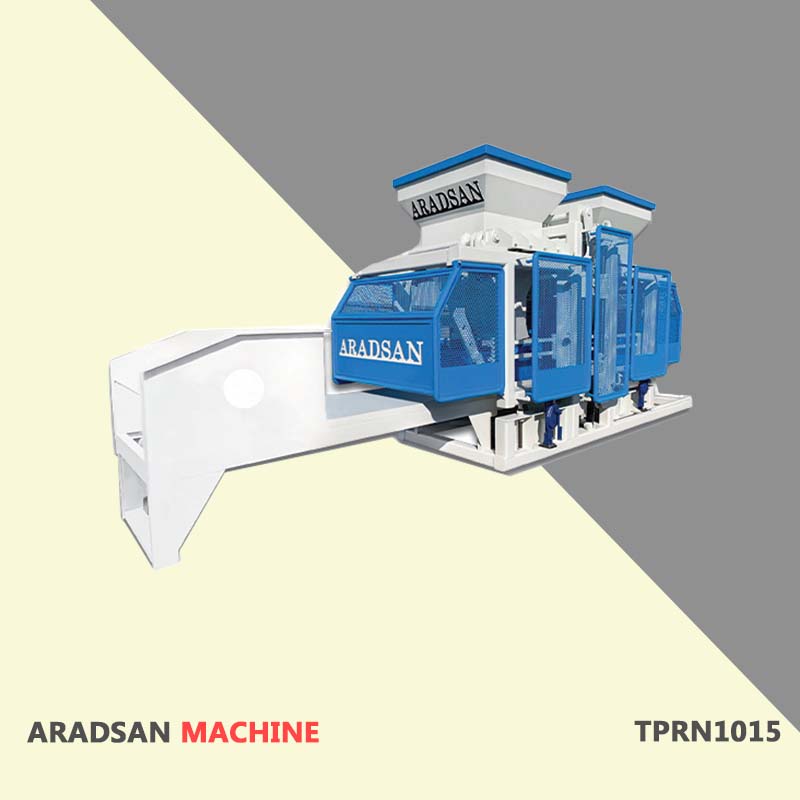

Product Image

Customs Information

• HS Code: 847440
