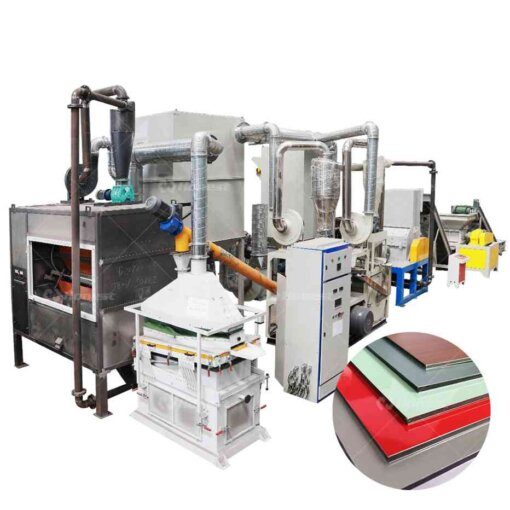

The working process of the aluminum-plastic sorting and recycling line is to send a large amount of materials into the crusher first, and then undergo secondary crushing and three-time grinding and decomposition. The decomposed finished materials are separated by a six-roller motor through a screen to separate plastic and metal.
Technical Parameter
| Model | power（kw） | capacity (kg/h) | Weight (kg) |
|---|---|---|---|
| HN-AP300 | 62 | 300 | 7500 |
| HN-AP500 | 98 | 500 | 12500 |
| HN-AP1000 | 170 | 1000 | 19500 |
The workflow of circuit board recycling line
Types of working equipment for circuit board recycling lines
-
Double Shaft Shredder
The double-shaft shredder is suitable for the waste recycling requirements of various industries, such as: electronic waste, plastic, metal, wood, waste rubber, packaging barrels, pallets, etc. There are many kinds of recycled materials, and the shredded materials can be directly recycled or further refined according to requirements. This series of double-shaft shredder has the characteristics of low speed, high torque and low noise.
-
Knife Crusher
The knife crusher is suitable for recycling all kinds of hard plastics, suitable for recycling all kinds of hard plastics, sample bottles, containers, plastic granules, tablets, materials, plastic barrels, PP plastic plates, cans, Pu pipes, waste plastics , Waste cables, waste plastic films, plastic bottles, ABS computer cases and other plastic products.
-
air separator
Airflow classifier is consisting of classifier, cyclone separator dust catcher, and draft fan. Material is up to classifier by strength of fan, separate fine material from coarse material under centrifugal force of grading turbine high speed rotation .and suitable fine material is collected by cyclone separator or dust catcher through grading impeller.
Pulse dust removal
The dust collection system can be widely used for dust purification in various industrial fields such as hardware, cement, building materials, ceramics, electronics, chemical industry, shoe industry, casting, plastic, aluminum, metallurgy, electric power, leather, food, machinery and non-ferrous metals.
Electrostatic Separation
Electrostatic separation is to use the difference in electrical properties of materials in a high-voltage electric field to achieve the purpose of separation. Due to the different electrical properties of various materials and the different stress states, the trajectory of the materials when they fall is different, so that the mixture of metal and non-metal separate.
Application
Aluminum-plastic products are very common in life. Discarding indiscriminately will not only pollute the environment, but also cause a waste of resources. Aluminum plastic recycling equipment can solve this problem very well.The following is a video display of some materials.
