Overview
Introducing our advanced Insert Safety Filter Screens, engineered for unparalleled reliability and performance across a multitude of critical applications. These innovative screens feature a distinctive integral locking end, leveraging our renowned, field-proven insert principle of controlled expansion. During installation, this mechanism precisely locks and retains the mesh screen securely in place. The process is streamlined by a pre-installed expander pin, which is simply pressed into the filter screen’s body. This action effectively expands the specialized locking grooves into the surrounding wall of the installation hole, creating an exceptionally robust and dependable retention for the component. Designed for critical fluid and gas management, these screens provide superior filtration and safety, making them an indispensable component in demanding operational environments.
Key Features
- Integral Locking End: Ensures a secure and permanent installation, preventing dislodgement even in demanding conditions.
- Controlled Expansion Principle: Utilizes a precise, field-proven method for locking the screen, guaranteeing reliability and consistent performance over time.
- Simplified Installation: Comes with a pre-installed expander pin, allowing for quick and efficient setup by merely pressing it into place, significantly reducing installation time and complexity.
- Premium Raw Materials: Constructed from high-grade stainless steel alloys including 1.4301/SUS304/AISI304/STS304, 1.4306/SUS304L/AISI304/STS304L, 1.4401/SUS316/AISI316/STS316, and 1.4404/SUS316L/AISI316L/STS316L, ensuring excellent corrosion resistance, high temperature stability, and extended durability in harsh environments.
- Diverse Woven Types: Available in Plain woven, Dutch woven, and sintered wire mesh configurations to meet specific filtration requirements and optimize flow characteristics for various media.
- Wide Micron Ratings: Offering standard micron ratings from 40 to 200 microns, catering to a broad range of particulate removal needs for fine and coarse filtration.
- Versatile Applications: Ideal for filtering air, water, oil, fuel, and gas in various sectors including industrial processes, safety systems, automotive engineering, medical devices, cooling systems, hydraulic applications, and critical valve components.
Specifications
- Height: Ranging from 4mm-15mm for normal operating conditions, providing flexibility for different system designs.
- Diameter: Available in diameters from 5.5mm-25.4mm to fit diverse installation holes and integration points.
- Layer Configuration: Offered in single, double, three, and multilayer designs to customize filtration efficiency, mechanical strength, and contaminant holding capacity.

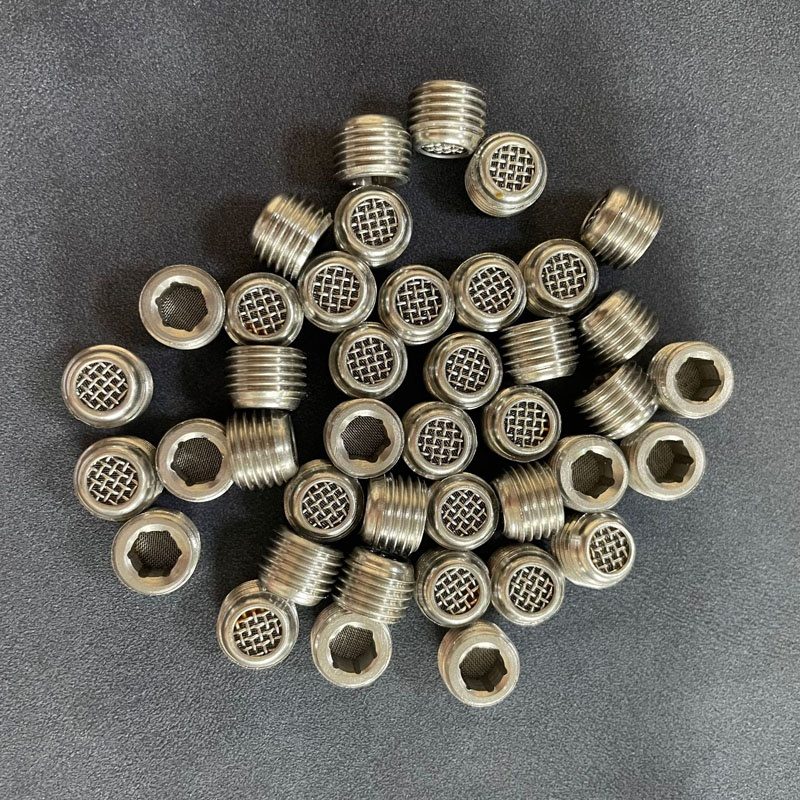

Product Image
Customs Information
- HS Code: 842199
