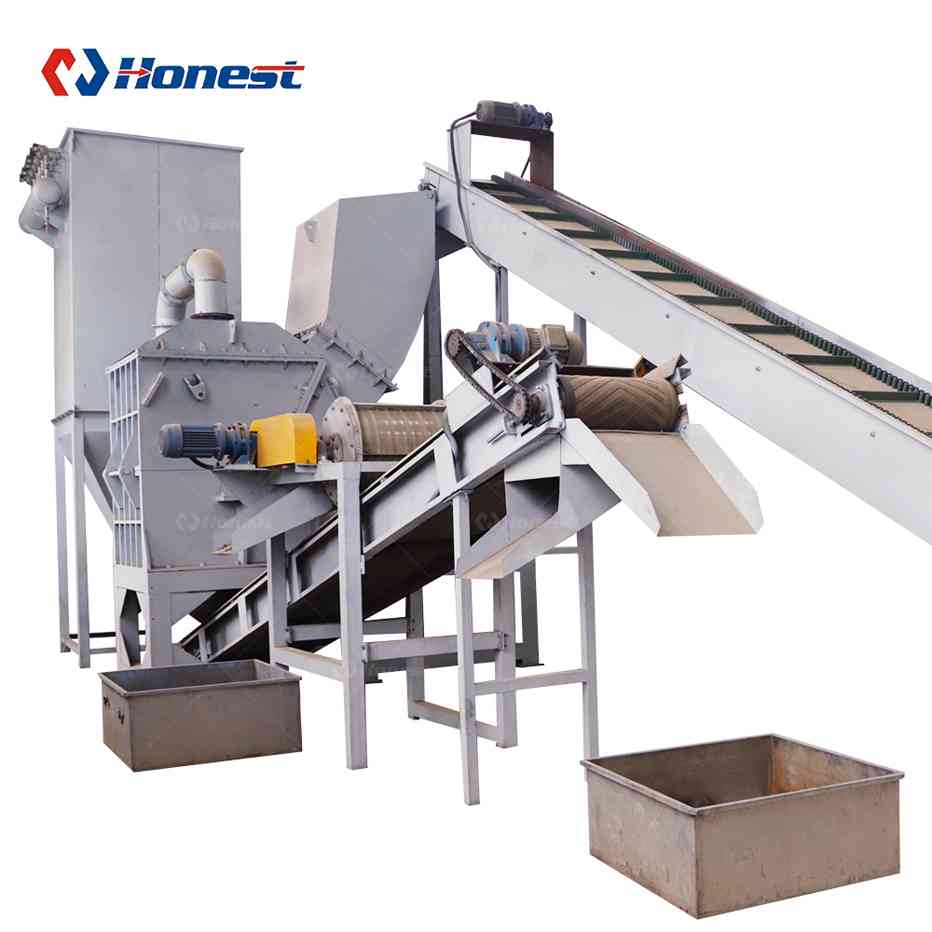

The waste motor recycling line is mainly suitable for processing motor stators, wire packs and small transformers below 20cm. The manual pre-sorted waste motor stators, wire bags and other materials are transported to the primary crushing and secondary crushing by the conveyor. The silicon steel sheet and copper mixture are separated by a strong magnetic roller sorter; then the copper mixture is conveyed by the conveyor to the pulverizer for further pulverization and refinement to obtain a product with higher purity, and then conveyed by the conveyor to the air separation The sorting machine sorts to obtain copper particles with high purity and a small amount of non-metal.
Technical Parameter
| Model | power（kw） | capacity (kg/h) | Dust Removing Efficienty |
|---|---|---|---|
| HN-WM1000 | 177 | 1000 | 99% |
| HN-WM3000 | 345 | 3000 | 99% |
| HN-WM5000 | 493 | 5000 | 99% |
The workflow of circuit board recycling line
Types of working equipment for circuit board recycling lines
-
Horizontal Hammer Crusher
The horizontal hammer crusher can crush all kinds of scrap metal, cables, cans, etc. into pellets. Low noise, no pollution, high crushing rate, uniform discharge particles, adjustable discharge particle size, stable performance.
-
Magnetic separator
The main working principle of the magnetic separator is that different metals will react to different magnetic forces, thereby screening out different metal scraps.
Pulse dust removal
The dust collection system can be widely used for dust purification in various industrial fields such as hardware, cement, building materials, ceramics, electronics, chemical industry, shoe industry, casting, plastic, aluminum, metallurgy, electric power, leather, food, machinery and non-ferrous metals.
Application
Some videos of the operation of waste motor recycling equipment are as follows. The materials processed include waste motor stators, waste motor rotors, waste motor wire packs, small motors, etc.
-
Scrap motor statord
-
Waste motor wire package
-
waste motor rotor
-
small waste motor
